Vacuum compnents & systems
Vacuum products
Valves, pumps, systems and more
GIDS GmbH offer a wide range of vacuum components, accessories and systems. Contact us for flanges and valves, vacuum pumps and leak detectors or even SEM systems and bespoke installations. We aim to make cost-effective offers combined with short delivery times.
Valves
HRPCS & IPD
Both camera systems are designed for single photon imaging, but they differ fundamentally in their principle of image acquistion.
HRPCS is a classic iCMOS camera with a double-MCP image intensifier. This camera is well-suited for applications such as bio- / chemoluminescence or weak fluorescence. The integration time per image can be extended virtually indefinitely and is limited only by the memory.
IPD acquires for each single event the corresponding position and time stamp. The the data are recorded as a (x,y,t) set and thus the image can be resolved in time. This system offers true 100% duty cycle.
Vacuum pumps
Dry screw, turbo, ion and rotary vane vacuum pumps

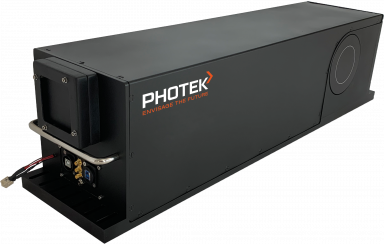

This camera delivers 160 im/s at full resolution of 2,3 MPix (1920 x 1200). The image intensifier allows shutter times down to 50 ns (standard) or even 3 ns (high-speed option) at repetition rates of up to 300 kHz.
Neutron camera
N-Cam
This system is based on a 4,2 MPix sCMOS camera. In its standard configuration it is equipped with a 75 mm Ø Gadox screen and a 75 mm Ø gateable (100 ns) single-MCP image intensifier. The system reaches an overall resolution of 10 LP/mm.

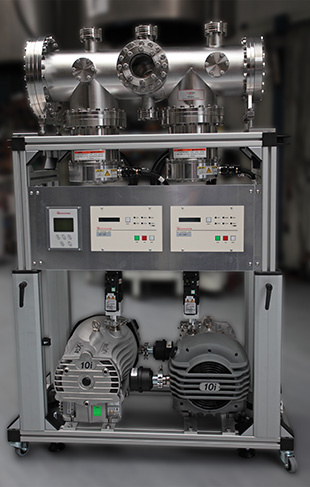

Velocity Map Imaging
Velocitas VMI
Velocitas VMI is a system including vacuum chamber and pumps, ion optics and camera.
Here you can find a detailed description of the essential components.
Software
All Photek cameras come with the Image32 software. This software integrates all functions for the various applications for intensified cameras.
