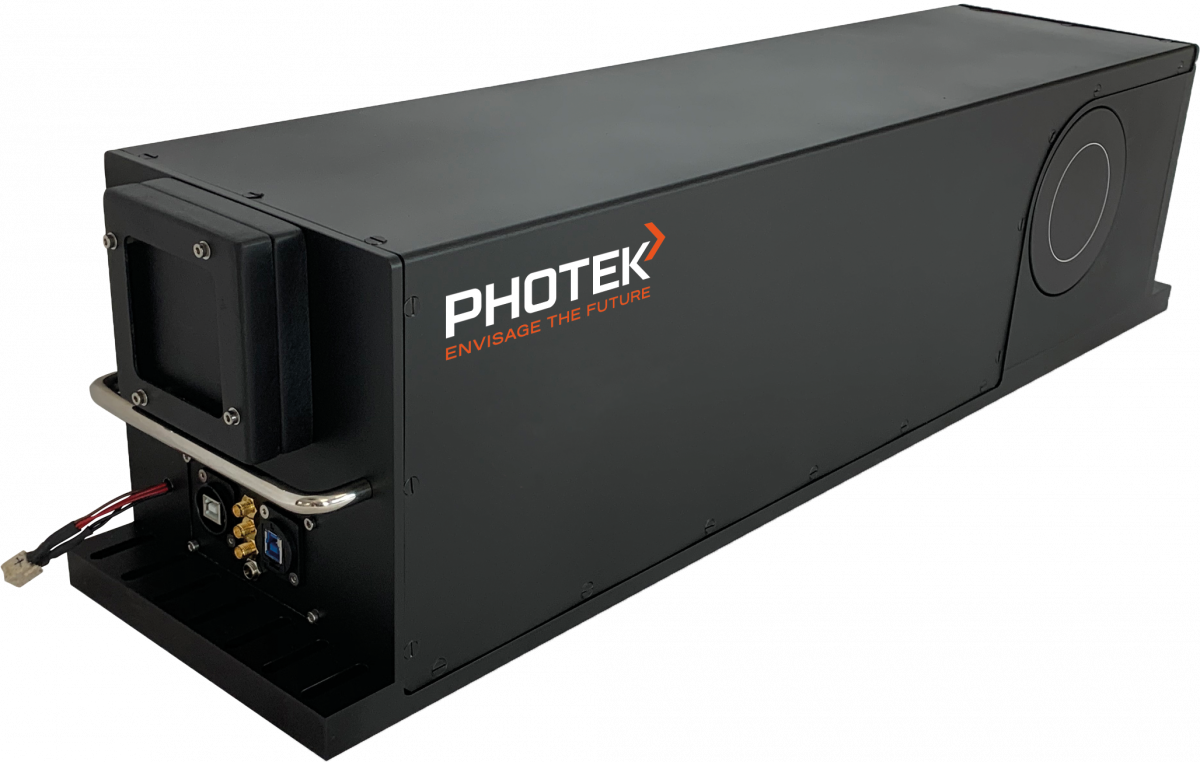

N-Cam Neutron Imaging

N-Cam represents the latest neutron imaging technology with superior sensitivity and easy to use software.
A novel intensified neutron camera system with the Gadox layer directly applied to the image intensifier, N-Cam provides greater sensitivity and excellent spatial resolution simultaneously, producing faster integration times and outstanding signal-to-noise.

N-Cam can be gated down to 50ns providing precise gating for time of flight energy specific imaging. The standard N-Cam comes with a 4.2 Megapixel cooled sCMOS camera and a 75mm diameter field of view capable of high speed or energy-specific radiography with >10 lp/mm resolution.


  • Neutron Radiography
  • Computed Tomography
  • Dynamic Imaging
  • Energy Specific Imaging
  • Stroboscopic Imaging


  • High Sensitivity
  • High Spatial Resolution
  • Larger Field of View
  • Precise Gating
  • Easy-to-Use Software
